Walk into any 3D printing forum with a broken outdoor bracket, and someone will inevitably tell you to ditch PLA and print a replacement in PETG. After spending over two years trying to keep a 3D-printed EV charger dock alive on an unshaded exterior wall at home, I can tell you all PETG isn't created equal, and swapping filament spools only solves half the problem. PLA has no business living outdoors in direct sun and load, while bare PETG demands thoughtful slicer settings, pigment choices, and surface protection to survive harsh ultraviolet radiation in a tropical country.
I learned this lesson the hard way after printing Bukken's 90-degree holder for Type-2 EV charger connector from Printables to organize my vehicle's home charger cord when not in use. Though my car uses the seven-pin IEC 62196 Type 2 connector, which isn't as popular stateside, the behavior of a 3D-printed part depends more on the polymer chains and mechanical failure modes than the model you print. If you mount a printed holster on a sun-drenched garage wall in Phoenix, Austin, or Miami to hold a North American SAE J1772 or Tesla NACS plug, nature attacks those layer lines similarly.
Starting with black PLA
And ending that journey in six months
Like most makers with a fresh spool already loaded, I printed my first EV charger holster in bare black PLA and screwed the bracket's three bottom hexagonal mounting holes into my exterior wall after cleaning up the print with a deburring tool. While I accounted for this being an outdoor print, I underestimated how unforgiving the sunlight was from morning until late afternoon. Because standard PLA averages a heat deflection temperature around 133°F (56°C ), most beginners expect an outdoor PLA print to droop like warm chocolate on the first hot afternoon. I was prepared for this, since the black filament would absorb more heat, too.
Interestingly, my black PLA print never sagged, warped, or showed signs of crossing the glass transition temperature that would re-flow the filament, so to speak. Instead, the constant cantilever tug of the heavy coiled charging cable, paired with UV radiation, ate at the polymer chains with no visible signs. Six months after installation, the bracket suffered a sudden, brittle fracture and dropped my charger handle on the floor. Pulling into your driveway at night only to find your charging connector lying directly in your tire path reminds you that functional prints are still high-stakes, when the liability isn't limited to replacing just the print.

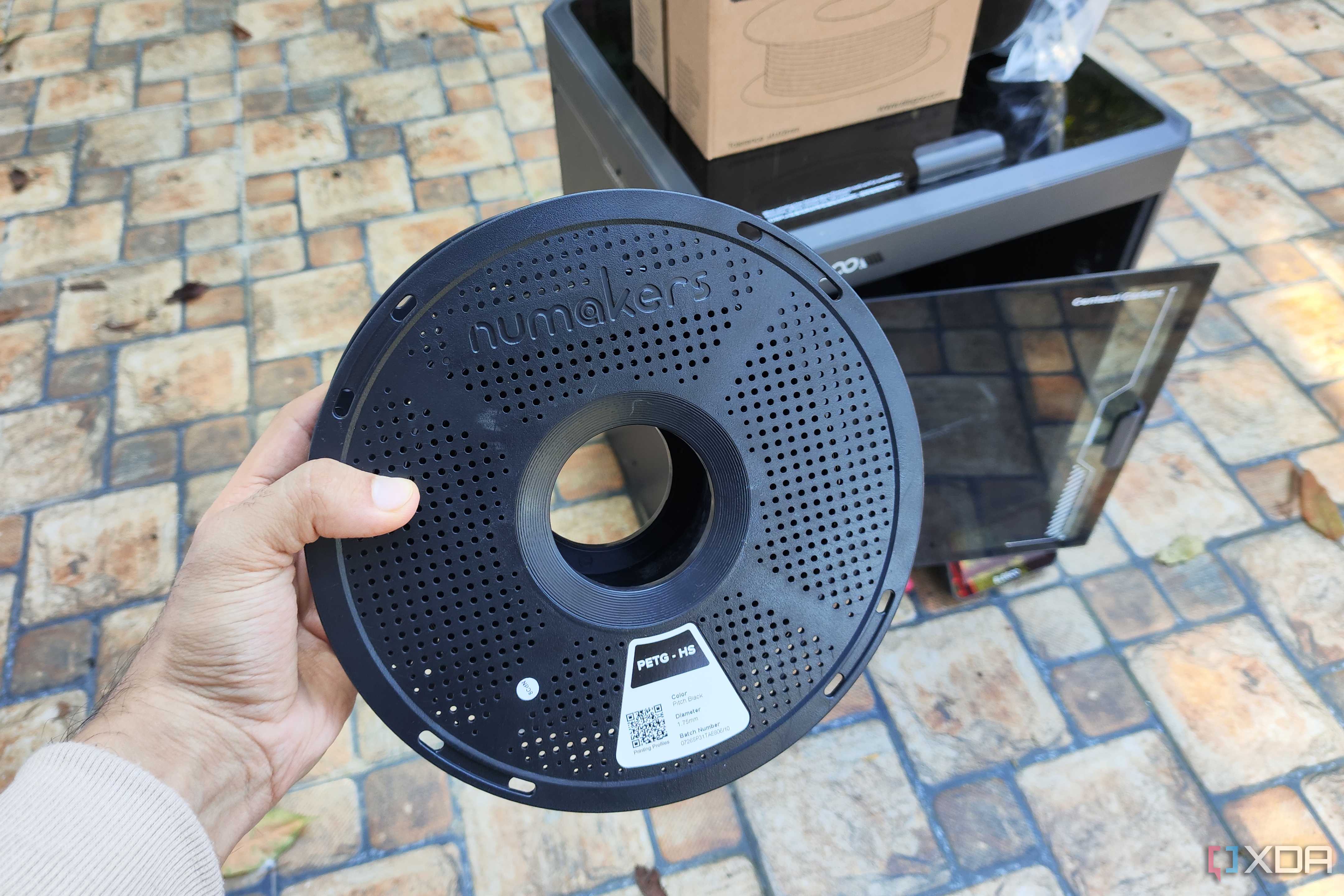

Determined to avoid another surprise fracture, I loaded a spool of transparent PETG for my second iteration. Before we talk about why that print struggled, we need to clear up a persistent myth regarding PETG moisture absorption. Many makers worry that outdoor rain and monsoon humidity will soak into a finished PETG part and ruin its strength, when pre-print moisture in the filament spool actually causes far worse damage than post-print moisture absorption from humid air. When an improperly stored or undried filament enters a 240°C hot end, trapped water flashes into steam and creates micro-voids that destroy interlayer adhesion.
I sidestepped that error and used well-dried clear PETG, but mounting it on the wall revealed a much greater weakness under the hot sun. Because the clear filament contains no opaque pigment to block sunlight at the surface, UV rays penetrate straight through the outer walls and attack the low-density internal infill across the entire cross-section at once. Within months, the clear plastic turned an ugly amber yellow and began losing structural integrity faster than any other PETG print I'd used.
Fighting a bad PETG print with another PETG print
It wasn't the solution I'd initially hoped
To stop the UV decay before the bracket snapped, I grabbed a can of white automotive acrylic spray paint and coated the yellowed print. I chose white because I'd initially theorized the black color's heat retention made the PLA part fail, though the second iteration in PETG confirmed the UV radiation was a bigger concern than heat soaking. With white paint, I hoped to reflect more visible and infrared solar radiation. Unfortunately, PETG possesses low surface energy that resists standard acrylic binders, and intense UV exposure also accelerates surface chalking in white pigments. Within weeks, the white automotive acrylic paint started flaking off the slick plastic in ugly sheets, so I unbolted and retired the part before it failed precariously.

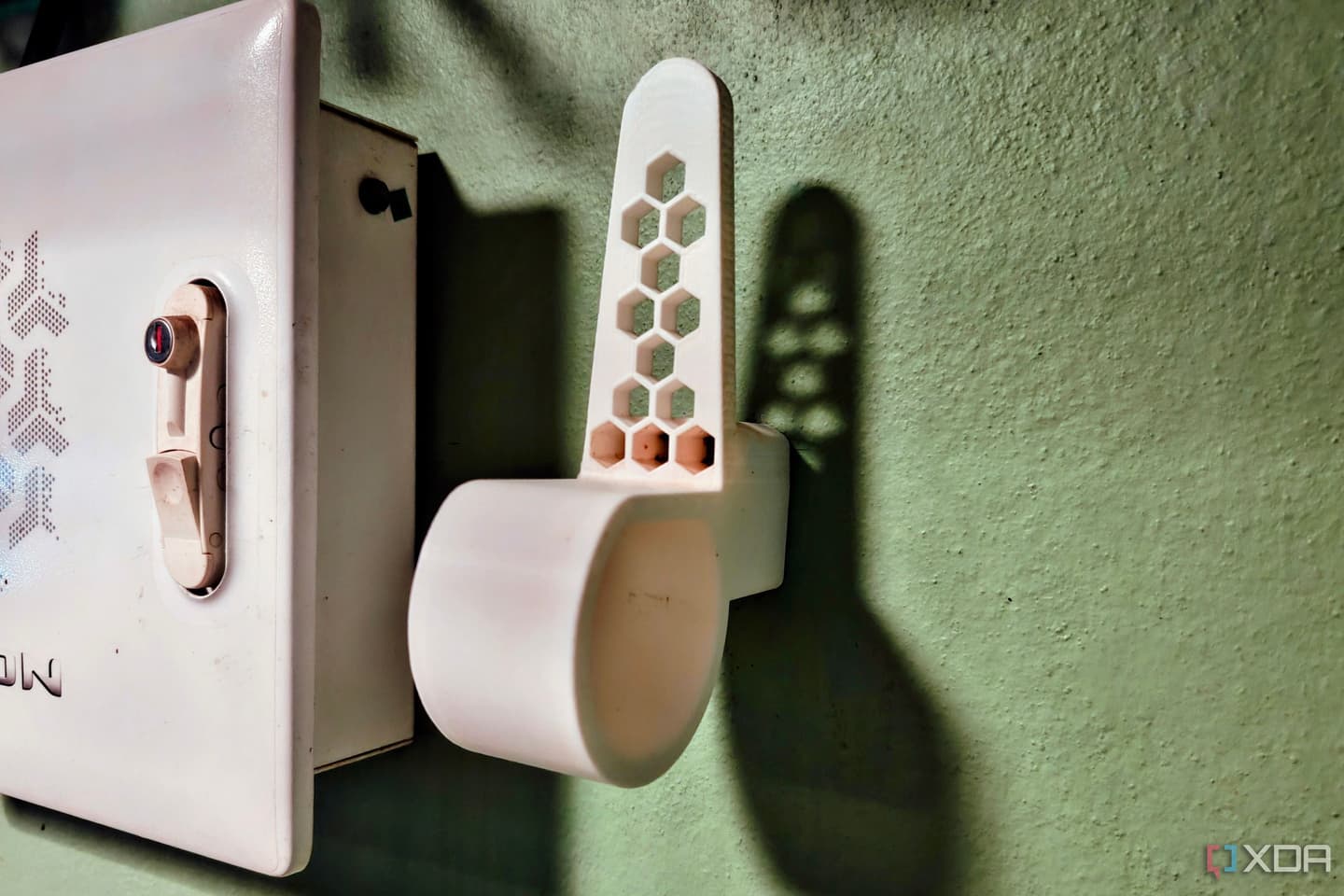

Watching that transparent print deteriorate taught me that print geometry and pigment opacity matter just as much as the base polymer choice. For my third attempt at this print, I ditched the clear spool and printed the exact same 90-degree dock in opaque white PETG using three perimeter walls and 20% infill. While bright-colored filaments visibly fade with time under the tropical sun, the titanium dioxide pigment in opaque white filament reflects solar heat while stopping UV photons at the outermost perimeter.
Adding that third perimeter wall ensured that even as UV radiation slowly weathers the exterior skin, two protected inner walls and the 20% infill core continue carrying the cable and charger's weight. That opaque white PETG bracket has held my charger securely on that sun-blasted wall for the past two years without a hint of creep or cracking.
Picking the right filament goes beyond materials
If the sun eventually embrittles this white PETG print, I already have my next defense lined up. Rather than trusting bare plastic or flaking white acrylic, coating a thick PETG part with metallic silver paint to reflect even more sunlight and UV rays than white paint. I might even consider adding a few coats of clear enamel paint.
Of course, if your printer has an enclosure and you want to skip the paint cans altogether, ASA remains the true purpose-built answer for unshaded outdoor hardware. Until I need to reprint my dock in ASA, though, three walls of opaque white PETG are finally keeping my EV charger off the driveway floor.
