Your shipping bill spiked—even though the product and box never changed. The culprit is how carriers price dimensional (DIM) weight: the space a parcel claims in the truck. They bill whichever is higher—scale weight or DIM weight—calculated as length × width × height ÷ 139.
Before you reach for a box cutter, ask what most guides skip: are you in the right carrier tier? Retail counter, daily-rate account, reseller, 3PL, or cubic program—each uses its own divisor, rounding rule, and surcharge trap. Nail that context first; then tackle reducing DIM weight without raising damage risk.
Before you cut the box, identify the rate rule
Think of a carrier tier as the lens a shipper uses to price the same package.
Walk your parcel into a UPS Store and you pay retail rates.
Hand it to a driver under your account number and you shift to daily rates.
Route it through a reseller, 3PL, or custom contract and the math changes again.
Each tier controls its own DIM divisor, discounts, and surcharge triggers. As of October 15, 2026:
At first glance, a higher divisor looks cheaper because it yields fewer calculated pounds. Reality check:
18 × 14 × 10 in. box
Yet retail base rates, minimum charges, and fuel or residential fees often erase that numeric edge. Compare the final landed cost, not the divisor alone.
Bottom line? Before you shave an inch off a carton, confirm which rulebook is already billing those inches.
Build a true-cost baseline before changing packaging
We can’t improve what we don’t measure. Before you pick up a box cutter, gather three things: last month’s invoices, a tape, and a scale.
Measure the finished parcel. Record length, width, and height after the product, inserts, void fill, tape, and label are in place. Since August 18, 2025 carriers round every fraction up to the next whole inch; 12.1 inches counts as 13 (per the Supply Chain Dive report). Note bulging flaps or loose mailers; even a half-inch puff can push you into a higher charge band.
Compare against the carrier’s numbers. Pull the dimensions the carrier billed. If theirs are larger, you are either under-measuring or the box is deforming in transit. Both hit your ledger.
Stack every dollar riding on that box:
Transportation (base rate, fuel, surcharges)
Packaging material
Pack labor
Expected damage and reship cost
Returns or claims administration
Here is a hypothetical sanity check. A smaller carton trims DIM weight and saves $0.65 in freight. Testing shows damage rising from 1.0 % to 2.5 %. At $60 to replace a damaged order, the extra 1.5 % failure adds $0.90 per shipment, wiping out the gain.

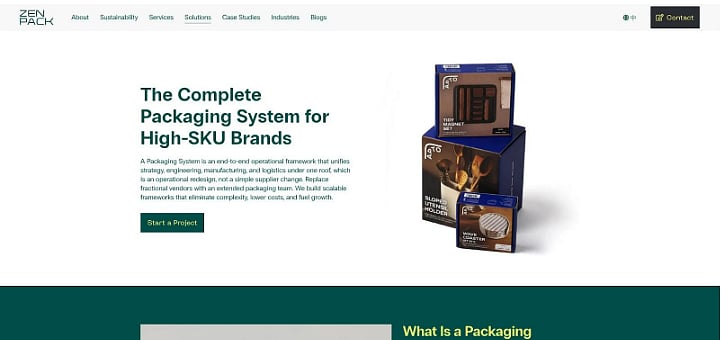

Packaging is a system: carton, cushioning, inserts, labor flow, even QC. Firms such as Zenpack Packaging treat it that way, unifying strategy, engineering, manufacturing, and logistics under one roof instead of tuning one component at a time
Spirits club Flaviar shows the payoff. Its foam inserts were bulky and drove up shipping costs; after Zenpack replaced them with flat-folding paperboard inserts, Flaviar cut shipping costs by up to 60%, according to Zenpack.
Log the data in a simple spreadsheet for each high-volume SKU or order profile: actual weight, rounded dimensions, DIM weight, billed weight, and every applied surcharge. That “truth table” shows whether a packaging tweak reduces total cost, not just one line on the invoice.
Use a carrier-first decision tree
1. Ask: could a different rating context solve the problem?
Start with live numbers, not hunches. Price a week of real orders across four contexts:
your current carrier account
a leading reseller platform
your 3PL’s house program
an alternate carrier such as USPS Cubic for parcels under 20 lb and 0.5 cu ft
A 2026 analysis by Veridian noted that for some package profiles, the July 2026 USPS dimensional-weight changes could raise costs by 15 %–20 % per shipment, making alternate programs more attractive. The lowest divisor rarely wins; the bundle with gentler minimums and surcharges often does.
If one context is the clear, service-equal cost leader, stop here; you have trimmed spend without touching a box.
2. If not, is contract negotiation justified?
High DIM-to-actual-weight ratios, repeat Additional Handling fees, or tight zone distributions indicate room to:
seek a higher DIM divisor
ask for reduced minimum package charges
request lower handling surcharges
According to Supply Chain Dive, shippers who focused on these “hidden” levers saved thousands during 2026 renewals.
3. Only then, redesign the package
When neither a new tier nor better terms close the gap, move on to right-sizing and cushioning tweaks.
By following this path — switch → negotiate → redesign — you protect margins before risking product damage.
Remove air, not protection
Every product you ship sits on two sliding scales: fragility and cube sensitivity. Picture a four-square grid.
Cast-iron skillet (low fragility, high cube) can spare an inch of sidewall without concern.
Glass terrarium (high fragility, low cube) survives only with engineered inserts, even if that adds an ounce.
Why map items this way? The cheapest cubic inch to remove depends on where the SKU sits. Trim headspace for the skillet; add precision cushioning for the terrarium. FedEx recommends at least 2–3 in. (5–8 cm) of cushioning around fragile items to absorb drops and vibration, which serves as a solid guardrail when you feel tempted to swap a box for a mailer.
A quick check: an 18 × 14 × 10 in. carton holds 2,520 cu in. Shave 1 in. off the shortest side and volume falls to 2,268 cu in.—about 10 % less space and one DIM-weight band on most services. That is air you can bill or eliminate.
Once each SKU is pinned to its quadrant, work through tactics in this order:
Remove process waste. Cut extra inserts and unused headspace before touching protection.
Re-orient or nest items when geometry allows.
Right-size the carton or use variable-depth boxes.
Upgrade cushioning, not reduce it, when fragility is high.
Shift to flexible mailers only when the product is both sturdy and presentation-agnostic.
Segment products before choosing a tactic
Here is the full grid:
Segment first, then prescribe:
Cube hogs, low fragility: headspace surgery or variable-depth cartons.
Delicate, low cube: smarter cushioning, minimal carton change.
High on both axes: custom pack-outs or dual-box designs.
Low on both axes: candidates for poly or padded mailers only when brand presentation allows.
Up-front segmentation prevents a one-size-too-big fix that wastes money or sparks returns.
Test the package, not the theory
Changing packaging on the fly is expensive, so run experiments, not hunches.
Lock the control and the variants. Use today’s carton as the control. Draft one or two variants that tackle the weakness you just found: trim an inch of headspace, swap foam peanuts for paper pads, or shift the soft good into a padded mailer.
Define the scoreboard before anything ships. Track billable weight and total carrier charge, material cost per unit, seconds of pack labor, damage plus reship rate, and customer-service touches.

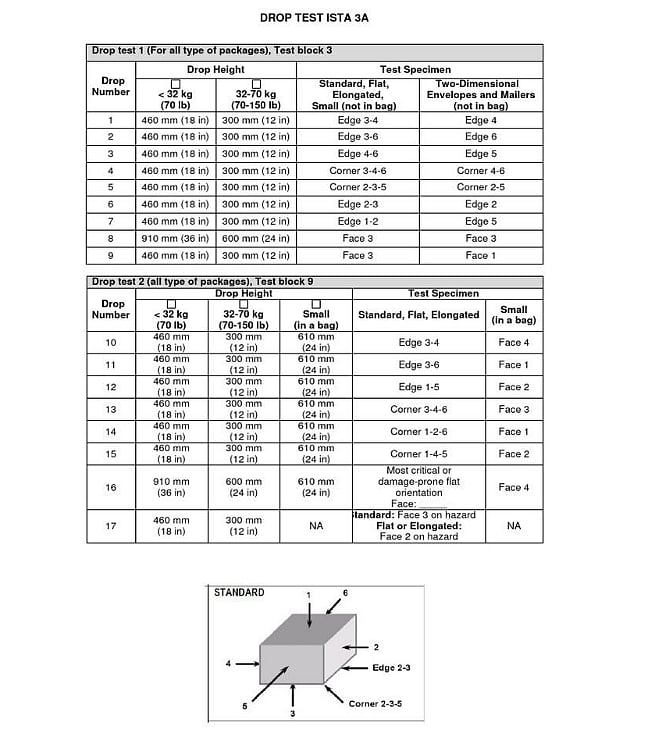

Run a quick in-house gauntlet. Check fit, tape integrity, and perform a basic drop. ISTA 3A calls for 17 drops, including a free-fall from up to 36 in. (910 mm) for standard parcels under 70 lb; treat that as a sanity guardrail. Anything that pops or crushes is cut.
Fly a limited live pilot. Ship roughly one week of orders or 200 units, whichever comes first. That volume is enough to catch early damage trends without risking a portfolio wipeout.
Grade daily against the control. A variant passes only when total shipping + material + labor savings exceed the incremental cost of damage, returns, and support.
Roll out in stages. When a design clears the bar, phase it in, audit the first two carrier invoices, and add the spec to your carton rules. If it stumbles, log the data and move on; the decision rests on numbers, not instinct.
Make DIM savings repeatable
Winning one cost battle means little if the gains vanish next quarter. Lock the savings in by turning DIM control into daily habit.
Rationalize the carton catalog. Pull six months of order data, group by finished dimensions, and keep only the sizes that cover 95 % of shipments. One Packchain case study cut SKUs from 22 to 6 and saved $45,000 in freight and material costs. Post a quick reference at every pack station so no one defaults to the “one-size-too-big” box.
Enrich product master data. For every SKU record, store outer dimensions, fragility class, mailer eligibility, and minimum tested clearance. Bad source data drives mis-rated DIM charges later.
Deploy cartonization or dimensioning tech. Modern systems snap a photo, weigh the pack, and compare it against rules in seconds. An Amazon research paper showed damage fell 24 % while right-sizing more than 130,000 products.
Run a 10-minute DIM audit each month. Sort last month’s shipments by billed weight, flag any package where the carrier’s measured dimension is at least 1 in. larger than yours, and review the top ten outliers. A quick catch today prevents a costly audit adjustment tomorrow.
Repeatable process turns a single win into a lasting edge.
Negotiate what packaging cannot fix
Sometimes physics wins: a product is simply too big, too light, or too delicate to shrink further. When the box will not change, the contract still can.
Bring indisputable data. Pull three months of shipment history and sort by billed weight, service, zone, and surcharge. Note how many boxes triggered DIM, minimum charges, Additional Handling (currently up to $58.75 per package for weight-based triggers in 2026), or the Large Package Surcharge of up to $331. Carriers value volume predictability and respect numbers.
Target pain-point levers, not just base-rate discounts.
a higher DIM divisor
reduced Additional Handling or Large Package fees
residential, delivery-area, or fuel-surcharge relief
grace bands that soften seasonal dips
Frame the ask in carrier language. Discuss revenue retention, capacity smoothing, and forecast accuracy. Offer consolidated pick-ups, longer tender windows, or mode shifts that balance their network.
Conclusion
When both parties leave believing they have won, you lock in savings no box redesign could touch—and you insulate the P&L from the next round of GRI and peak-season fees.
