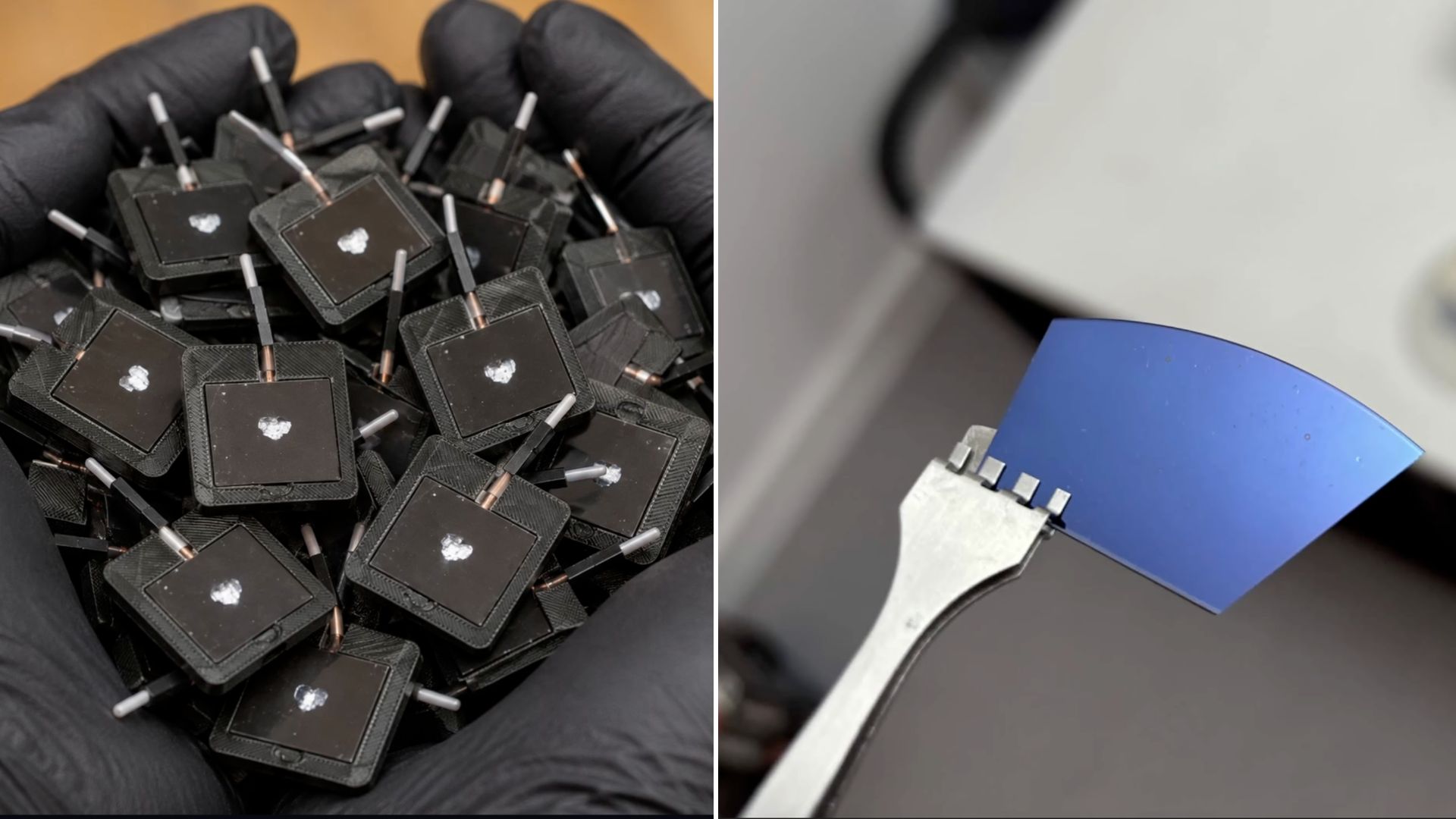

Making a working solar cell usually requires specialized equipment for process silicon, control temperatures, and create microscopic electrical structures. But semiconductor engineer and YouTuber Dr. Semiconductor has demonstrated a more unconventional approach: using a small microwave kiln to turn an ordinary silicon wafer into a functioning photovoltaic cell.
The experiment produced a working cell with a reported efficiency of around 5%, showing that a basic semiconductor device can be fabricated in a home workshop using comparatively accessible equipment.
The result falls well short of commercial solar cells, but the project offers a fascinating look at how silicon’s electrical properties can be modified without a conventional industrial furnace. It also builds on Dr. Semiconductor’s broader effort to demonstrate how semiconductor fabrication techniques can be adapted for a home laboratory.
How a microwave kiln helps create a solar cell
The central challenge is not simply heating silicon, but creating a junction between two differently doped regions of the semiconductor. That junction allows a solar cell to convert incoming light into electrical energy.
In this experiment, Dr. Semiconductor starts with a p-type silicon wafer, which contains positively charged carriers known as holes. The next step is to introduce phosphorus into the wafer’s surface, creating a thin n-type region. Where the two regions meet, they form a p-n junction that separates electrical charges generated when light strikes the material.
The phosphorus-containing coating is heated using a small microwave kiln. Rather than placing the wafer directly in a microwave oven, the kiln uses a heat-absorbing material to convert microwave energy into heat. The setup reaches temperatures high enough for phosphorus to diffuse into the silicon, a process normally performed using specialized thermal-processing equipment.
Temperature control is critical. The process needs enough heat to alter the silicon’s surface, but silicon melts at approximately 1,414°C (2,577°F). The creator’s guide reports that the particular setup reached around 1,000°C (1,832°F), illustrating how a relatively simple heating arrangement can perform a demanding semiconductor-processing step.
Adding contacts turns the wafer into a working device
Once the doped wafer cools, the build requires electrical contacts on both sides. These contacts collect the electrical current generated by the junction when light strikes the cell.
The creator uses soft metals to make those connections, rather than relying on the specialized contact-deposition processes common in semiconductor manufacturing. The completed device produces a measurable electrical response under illumination, demonstrating that the wafer is functioning as a photovoltaic cell rather than merely undergoing a heating experiment.
According to the project’s published guide, the cell achieved approximately 5% efficiency. That is a modest result compared with commercial silicon solar cells, which commonly exceed 20% efficiency. The creator identifies contamination, contact quality, and the lack of an anti-reflection coating as potential areas for improvement.
An anti-reflection coating helps reduce the amount of sunlight reflected away from a cell before it can be absorbed. Better electrical contacts can also improve how effectively generated current is collected. In commercial production, manufacturers carefully control these and other factors to maximize the amount of electricity produced from a given surface area.
What the experiment says about home semiconductor fabrication
The project is not a practical shortcut to manufacturing inexpensive solar panels at scale. Its output is limited, and its processing method lacks the precision and repeatability required for commercial production. High-temperature equipment and semiconductor-processing chemicals also present substantial safety challenges, so the demonstration should not be mistaken for a simple kitchen-counter project.
Its significance lies elsewhere. It shows how people can explore fundamental semiconductor processes outside an industrial fabrication plant. By combining an ordinary silicon wafer, a microwave kiln, and relatively accessible materials, Dr. Semiconductor has demonstrated the creation of a working photovoltaic junction in a home workshop.
The project also highlights the distinction between making a device function and optimizing it. Producing a measurable electrical output is an important first step, but improving efficiency requires better control over materials, processing, surface properties, and electrical contacts.
For semiconductor enthusiasts, the result offers a hands-on demonstration of the physics behind solar power and a reminder that technologies associated with billion-dollar manufacturing facilities still rely on underlying principles that can be investigated on a much smaller scale.
