How to Connect a Wii to a Modern TV: 7 Easy Steps

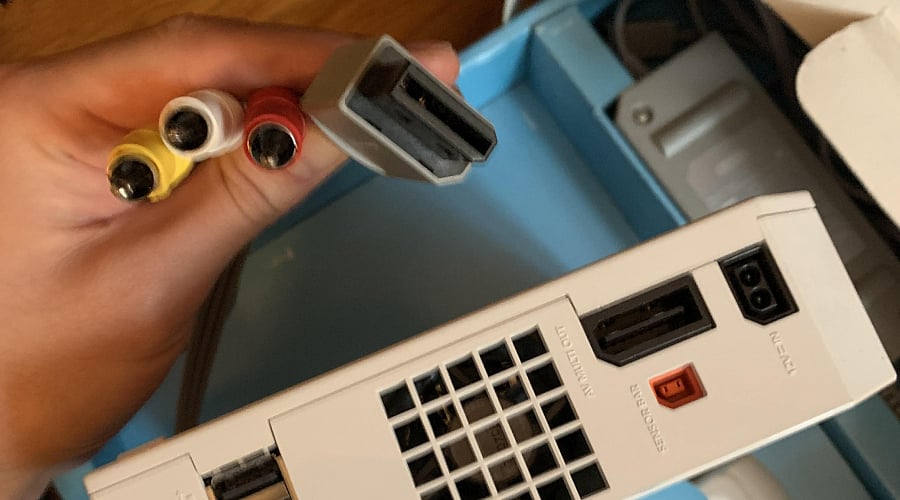

Choose the Right Connection: Most modern TVs use HDMI, while the original Nintendo Wii uses its own AV Multi Out port. A Wii-to-HDMI adapter is the easiest option for TVs without older ports. Check the TV’s available inputs before buying an adapter.

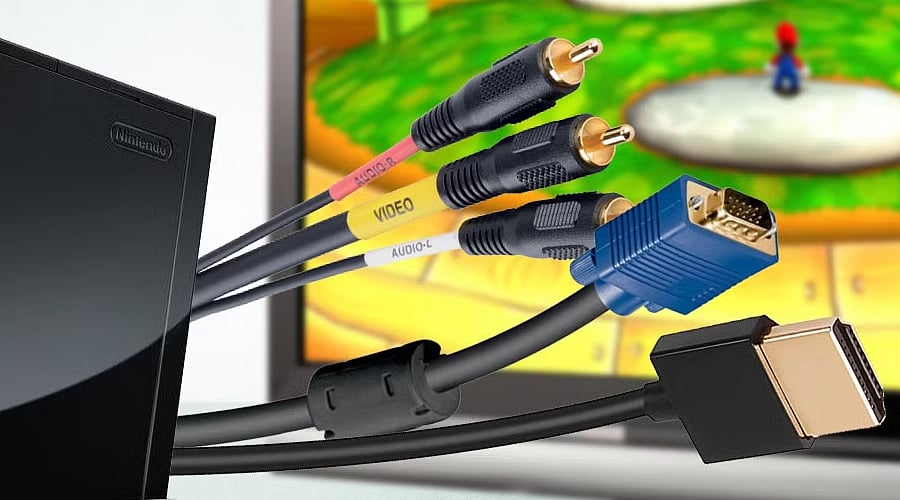

Connect the Wii-to-HDMI Adapter: Turn off the Wii and TV. Plug a compatible Wii-to-HDMI adapter into the console’s AV Multi Out port. Connect an HDMI cable to the adapter and plug the other end into an available HDMI port on the TV.

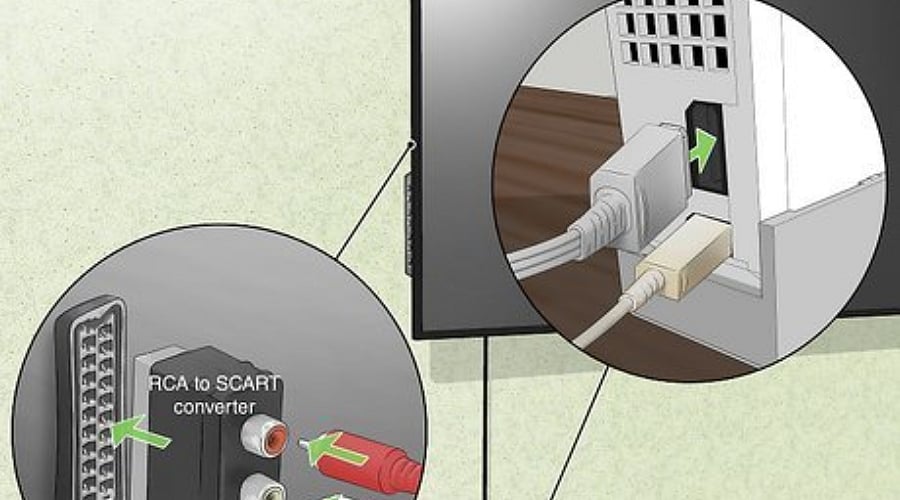

Select the Correct HDMI Source: Turn on the Wii and TV. Press the Input or Source button on the TV remote and select the HDMI port used for the connection. The Wii Menu should appear on the screen once the correct input is selected.

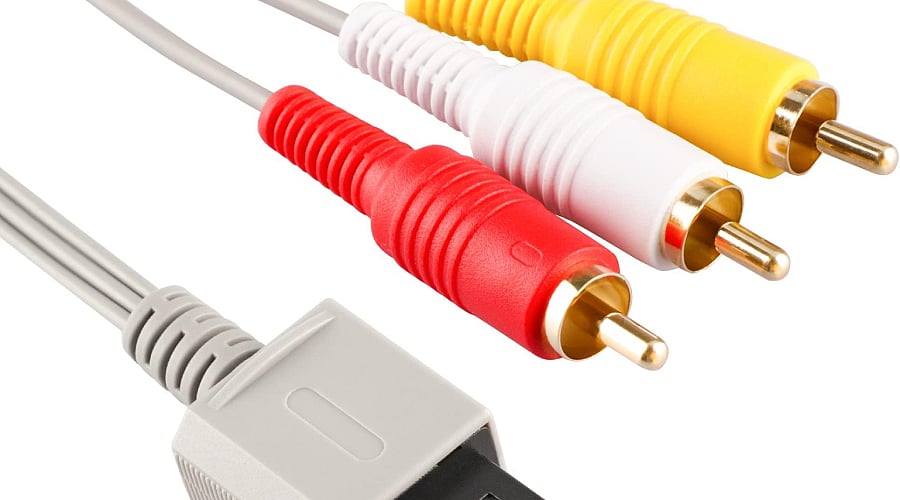

Use the Original AV Cables: If the TV has composite inputs, connect the Wii’s original AV cable directly. Match the yellow plug to video, white to left audio, and red to right audio. Select AV or Composite on the TV to start playing.

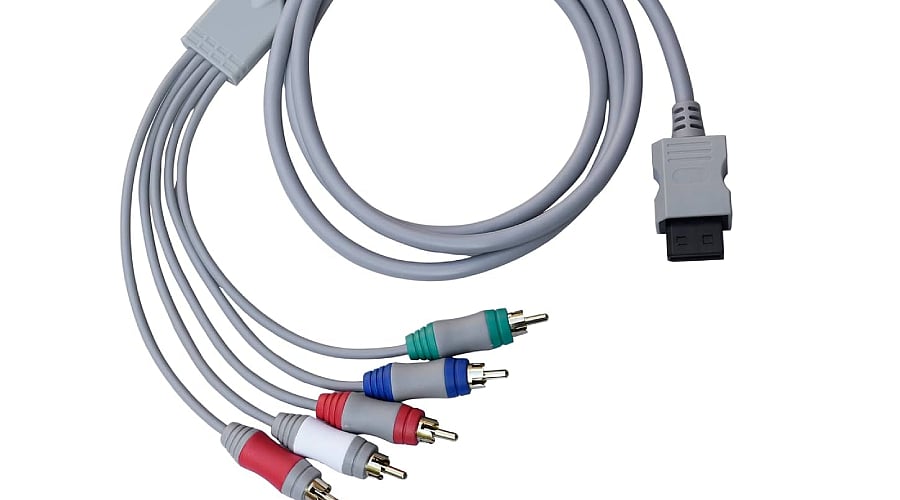

Try Component Cables for Better Picture Quality: Some TVs have component inputs that support a Wii component cable. Connect the green, blue, and red video plugs to their matching ports, then connect the separate red and white audio plugs. Select Component on the TV for a cleaner picture than standard composite video.

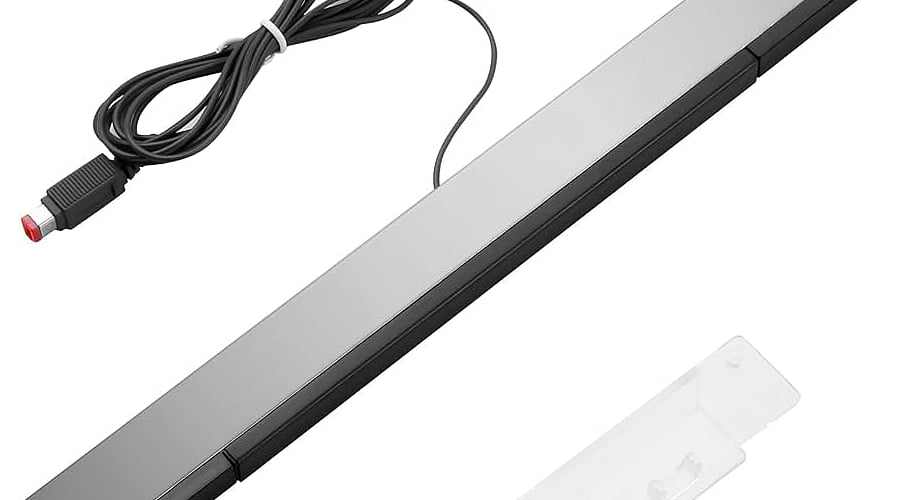

Set Up the Sensor Bar and Wii Remote: Plug the Sensor Bar into the dedicated port on the back of the Wii. Place it centrally above or below the TV screen. Turn on the console and sync the Wii Remote if needed. The Sensor Bar helps the remote track pointing movements during gameplay.

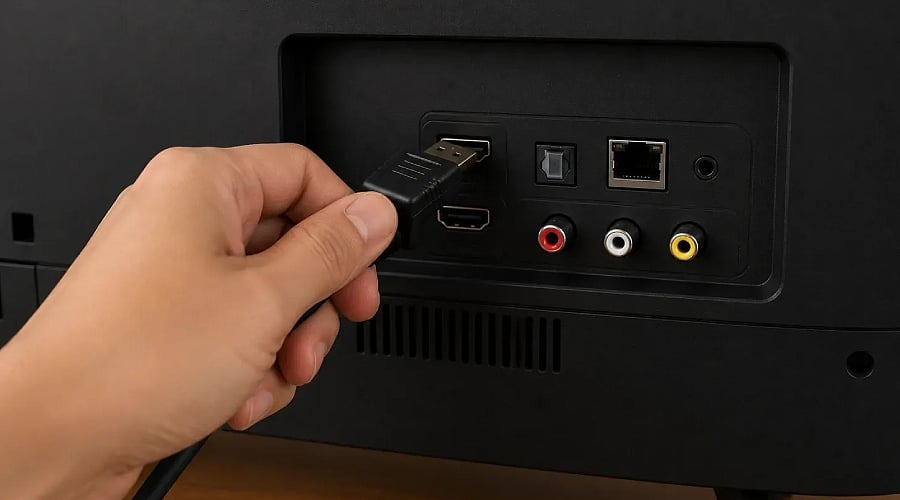

Fix Common Connection Problems: If the screen stays blank, check the selected TV input, HDMI cable, and adapter connections. Make sure the adapter supports the original Wii. If sound is missing, check the TV volume and adapter audio support. For the best results, use a reliable adapter and avoid excessive TV sharpening.
