12,262 meters down, the Soviet SG-3 Kola Superdeep Borehole set the world record for the deepest hole ever drilled after a project that began in 1970 aiming for 15 kilometers. The effort ultimately ended in 1992 when extreme heat and pressure made the rock behave plastically, warping and squeezing the borehole shut despite specialized rigs like the Uralmash-15000.
Key Takeaways
- The Soviet Union’s SG-3 Kola borehole hit a record 12,262 meters in 1989, short of its 15 km goal.
- Core samples at Kola upended seismic models, finding no expected granite-to-basalt boundary at depth.
- Heat near 414°F made rock flow and squeeze the hole shut, ending the Kola project in 1992.
On the Kola Peninsula, Soviet engineers spent two decades pushing drill steel into the planet for a pure scientific prize: a direct look at the deep crust. The effort, known as SG-3, set a human record at 12,262 meters and then hit a wall that had nothing to do with budgets or stubborn rock. Down there, rising heat and pressure changed the rules of the job, warping equipment and turning once-brittle geology into something that could squeeze a borehole shut. The result is a rare case where the Earth itself, not politics or money, dictated the endpoint.
We spend plenty of time tracking what’s happening miles above Earth, from Starlink launches to NASA probes. Going the other direction is harder. One of the boldest attempts started during the Cold War and still holds a record today. The story is less about money or broken drills and more about physics, heat, and stubborn rock behaving in unexpected ways.
A science project disguised as a drilling job
In May 1970, the Soviet Union began SG-3, the Kola Superdeep Borehole on the Kola Peninsula in Russia, aiming for nearly 9.3 miles into the continental crust. It was not an oil hunt. The point was to pull up core samples and test geophysical theories that, at the time, were inferred mostly from seismic signals and surface measurements.
It’s easy to forget how “data-driven” this was for its era. The team wanted physical evidence, rock in hand, to check what textbooks claimed lay below.
The day the hole started fighting back
To chase that depth, engineers brought in the Uralmash-15000, a custom rig with a drilling tower about 243 feet tall. At these lengths, the mechanics become their own enemy. The drill string eventually weighed more than 200 tons, and pulling it out and running it back down could take up to 18 hours per cycle.
Then came failure in the real world. In September 1984, after reaching 39,587 feet, part of the string snapped, trapping equipment deep below. The workaround was to sidetrack from about 22,966 feet, effectively creating branching paths rather than a single clean shaft.
The discoveries that embarrassed the models
Even without hitting the original target, SG-3 delivered surprises. Core samples did not show the expected granite-to-basalt transition that many seismic interpretations assumed would appear at depth. Instead, the drilling suggested the seismic “boundary” was more complicated than a simple change in rock type.
Researchers also found mineralized water in fractures within crystalline rock thought to be effectively impermeable. And at roughly 3.7 miles down, they even identified marine microfossils, a reminder that geology keeps receipts longer than humans do.
Why it stopped at the deepest number that still stands

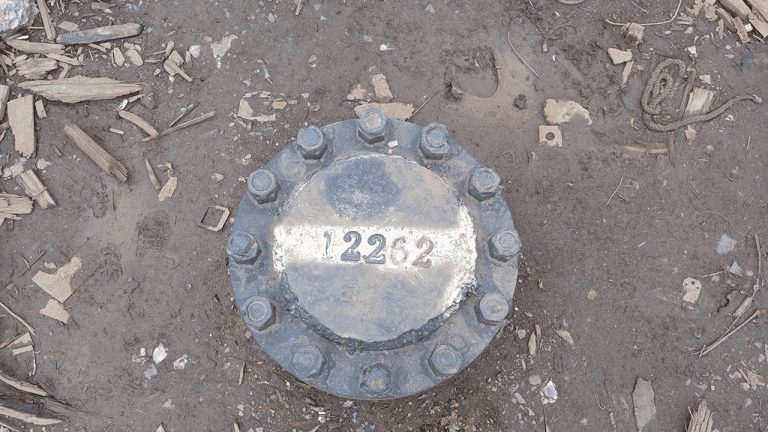

The record was set in 1989 at 12,262 meters (7.6 miles), and the project was permanently shut down in 1992. Heat rose faster than expected, reaching about 414°F near the bottom. Under immense pressure and temperature, the rock didn’t simply crack like a brittle surface boulder. It began deforming plastically, slowly squeezing inward and narrowing the borehole behind the drill bit.
The site later wound down as a research outpost, and surface structures were dismantled in 2008. Decades later, the lesson remains: you can budget for steel and labor, but how do you budget for a planet that tries to seal the hole back up?
