As artificial intelligence (AI) workloads migrate to endpoint hardware, edge AI devices face immense pressure to deliver real-time inference within highly restrictive power and thermal envelopes. Traditional silicon scaling no longer yields the power-density returns it once did. To compensate, engineering teams are turning to aggressive voltage scaling. Lowering supply voltages down to near-threshold operating points unlocks step-function gains in performance-per-watt.
However, operating near the transistor threshold introduces severe physical complexities. Breaking through this “Edge AI Power Wall” requires moving away from traditional margins and adopting an integrated, low-voltage-ready Foundation IP platform.
In a recent whitepaper, “Beating the Edge AI Power Wall with Low Voltage Foundation IP”, Synopsys highlights the key strategy engineering teams are adopting to break through this wall. This approach calls for silicon-proven logic, embedded memory, and I/O, all co-optimized with electronic design automation (EDA) flows.
Key Challenges in Achieving Predictable PPA at Reduced Voltages
Achieving predictable power, performance, and area (PPA) at reduced voltages remains a major hurdle. Standard EDA flows, signoff models, and guard-banding strategies calibrated for nominal super-threshold voltages lose accuracy at deep low-voltages.
At reduced supply voltages, three main obstacles emerge:
- Non-linear delay growth: Timing models calibrated at nominal voltage can no longer predict path delays accurately as delay grows sharply and non-linearly.
- Compressed noise margins: Reduced voltage swings complicate level shifting, signal isolation, and retention circuits.
- Heightened sensitivity: The design becomes highly vulnerable to local IR-drop, power-grid droop, and thermal variations.
When signoff models lack high-fidelity calibration, engineering teams face unacceptable risks. Over-constraining a design with excessive guard-bands erases the power gains that low-voltage operation is supposed to provide. Conversely, under-estimating variations leads to late-stage timing failures, yield loss, extended validation cycles, and costly mask re-spins that impact total cost of ownership (TCO).
How Near-Threshold Voltages Impact SoC Design, Performance, and Reliability

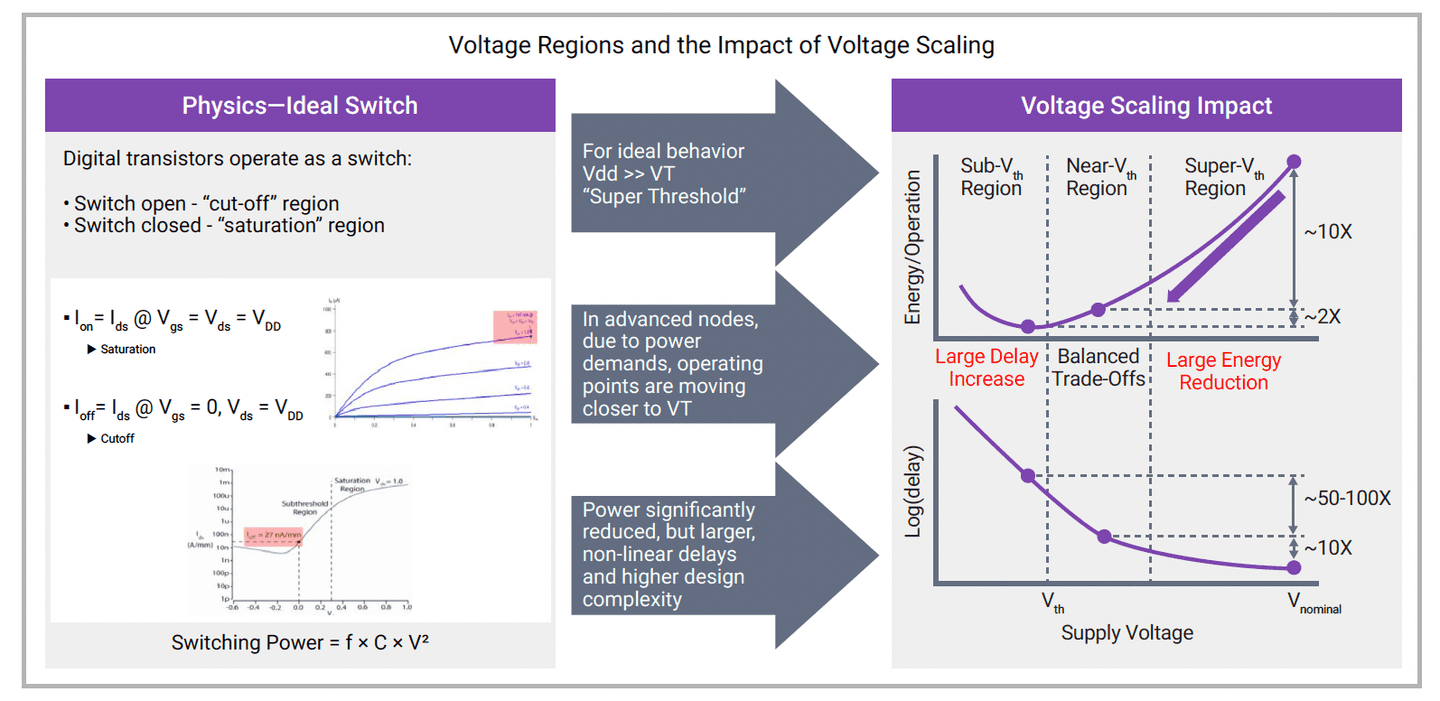

Lowering VDD to near-threshold levels delivers a ~10X reduction in energy per operation. However, because transistor drive currents drop sharply, path delays jump by ~10X. Pushing further toward and below Vth yields only marginal additional energy savings (~2X) while delay surges by ~50X to 100X.
At near-threshold voltages, timing becomes overwhelmingly dominated by process, voltage, and temperature (PVT) variations and jitter. Small, localized fluctuations in load, slew, or temperature can easily push safe paths into timing failure. Achieving reliable signoff demands waveform-aware timing models, expanded PVT corner sets, and silicon-proven modeling integrity verified at the lowest target supply voltage.
Restoring Predictability with Low-Voltage Foundation IP
Designing at 0.4V doesn’t mean giving up on a predictable design flow. It requires upgrading the foundation you build on by co-optimizing the underlying Foundation IP stack with EDA signoff tools. Chip architects can reconcile non-linear low-voltage physics with standard implementation tools, restoring design flow predictability at ~0.4V.
Low-Voltage Logic Libraries That Understand Variation
Synopsys Logic Libraries utilize moment-based Liberty Variation Format (LVF) characterization and low-voltage-aware models to capture non-linear delay and slew behaviors across wide PVT corners. Coupled with enhanced verification checks for Multiple Input Switching (MIS) effects, skew interactions, and pulse-width integrity, and validated in silicon, this helps ensure signoff models correlate closely with real-world silicon behavior.
Overcoming the Memory Vmin Bottleneck
Memories dominate die area and contribute significantly to power in AI accelerators, and memory Vmin often dictates the SoC’s minimum operating voltage. To overcome this bottleneck, Synopsys provides tailored architectural options:
Single-Rail SRAMs with Assist Circuits: Silicon-validated assist features let single-rail macros operate down to typically ~600mV macro Vmin for straightforward V2 energy scaling.
Dual-Rail Memory Architectures: For systems pushing logic toward near-threshold, dual-rail SRAM decouples the logic supply from the memory array supply using robust level shifters. This allows logic to achieve maximum power savings while memory maintains very high density ( 38 Mb/mm² at 380/540mV in 3nm FinFET, as presented at ISSCC 2025) .
Ultra-Low Power Register Files (ULP RFs): Wide-datapath activation and pooling blocks use ULP RFs running right at the logic Vmin floor to bridge synthesized register arrays and large RF macros.
Low-Voltage Ready I/O
Low-voltage ready I/O libraries help prevent I/O domains from setting system Vmin floors. The portfolio covers control interfaces (GPIO, I3C/I2C, SWI3S), high-speed links (LVDS, RGMII), storage interfaces (SD/eMMC), and 2.5D/3D chiplet I/O.
IP-EDA Co-Optimization and Customization
Near-threshold design requires tight co-optimization between cell architectures, compiler settings, and EDA implementation tools.
When off-the-shelf IP is insufficient for unique SoC constraints, Synopsys provides customer-specific solution fine-tuning alongside Design-Technology Co-Optimization (DTCO) and custom design and characterization services. This can include custom low-voltage logic cells, custom level shifters, tailored dual-rail memory compilers, and specialized PVT signoff corners.
Silicon Proof: 20% Power Reduction in Production AI Silicon
The practical value of this platform was demonstrated on a production AI-networking SoC manufactured on an advanced process node. The design team deployed a customized low-voltage Foundation IP solution featuring tuned low-voltage logic cells, custom level shifters, a custom dual-rail memory compiler, and targeted near-threshold PVT corners.
Key Outcomes:
- ~20% Power Reduction compared to the baseline design.
- Zero Schedule Impact: Met area, performance, and all schedule objectives.
- No Re-spins: Avoided costly re-spins and reduced validation overhead.
Summary
Very-low voltage and near threshold operation (~0.4V–0.5V) is becoming central to competitive Edge-AI SoCs. While 0.4V introduces severe variation and delay jumps, pairing silicon-proven Foundation IP with moment-based LVF characterization, custom fine-tuning, and tight EDA co-optimization makes deep low-voltage operation practical, with predictable convergence and reduced execution risk.
You can download the whitepaper here.
