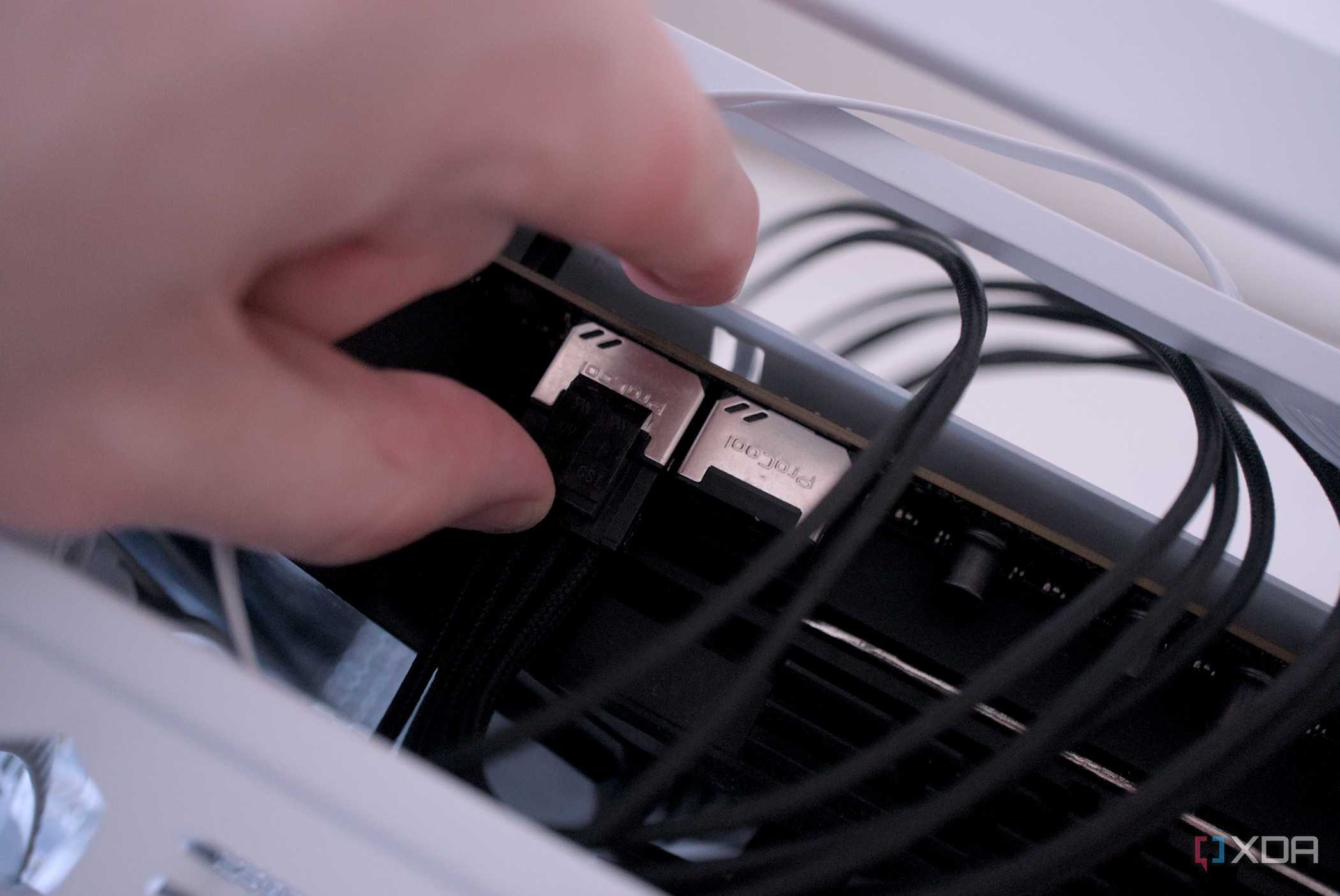

If you look at the 8-pin cable running to the top-left corner of your motherboard, it's most likely two 4-pin cables joined together. You might even remember plugging it that way when you first assembled your PC. Almost nobody needs that split anymore, but power supplies still ship with this 4+4 split, and the reason has a lot to do with the CPU industry of the early 2000s.
Intel's Pentium 4 launched in 2000, and brought higher power requirements to desktop CPUs. This required a change in motherboard power delivery, and led to the introduction of a dedicated power cable for the CPU. From 4 pins to 4+4 pins, and later 8+4 and even 8+8 pins, the CPU power cable kept making space for increasing CPU power budgets.
The standard came about due to higher-wattage CPUs nearly three decades ago, but it continues to exist in modern power supplies and motherboards simply because there's no point in changing it.
The CPU power cable wasn't always a thing
The turn of the millennium made it necessary
Before Pentium 4 came out in 2000, all the power the motherboard needed was delivered via a single, 20-pin connector. Of course, hard drives, optical drives, and case fans needed separate cables, but the CPU (and GPU) power requirement was fulfilled by the 20-pin connector. This was the era of the original ATX standard.
When it was clear that the Pentium 4 chips needed more headroom, the ATX12V specification added a new 4-pin connector to supply +12V dedicated power to the CPU. People needed new ATX12V power supplies, while older systems continued using standard ATX models. The new 4-pin removed the burden of CPU power from the 5V rail of the main connector, making way for future redesigns.
With the ATX12V 2.0 revision in 2003, besides the main connector evolving into the 24-pin variant we know today, the 4-pin CPU connector morphed into the 4+4 pin standard most people are familiar with. It was borrowed from server motherboards to accommodate multicore CPUs with growing power requirements.
The 4+4 split solved backwards compatibility
An essential compromise

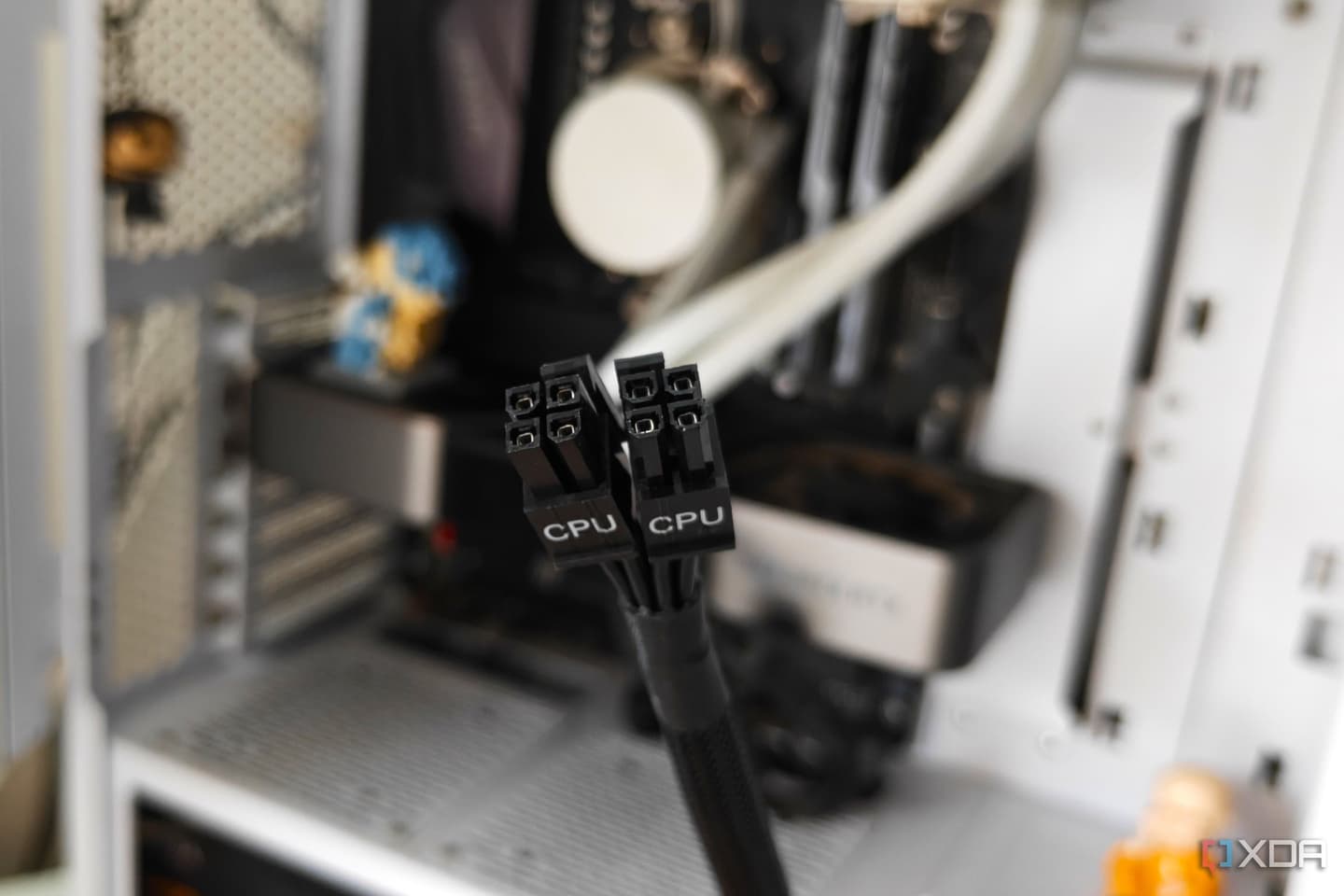

The reason manufacturers didn't simply create a rigid 8-pin CPU connector was legacy compatibility. Older motherboards still needed the regular 4-pin connector, while newer systems were quickly adopting the 4+4 pin standard. Instead of making two separate cables, they decided to ship two separate 4-pin cables. This allowed older systems to use one 4-pin cable while ignoring the other, and newer CPUs used both of them to create a fused 8-pin cable.
This EPS12V standard, borrowed from server systems, became a formal part of the ATX12V specification with the 2.2 revision around 2005. Mid-to-high wattage CPUs continued using the newer 4+4 pin standard, and the discrete design of the cable allowed consumers time to gradually adopt it without losing compatibility. As we saw in the later years, PSU standards evolved without disrupting this underlying design.
Breaking the convention helps no one
Manufacturers have little incentive to change things

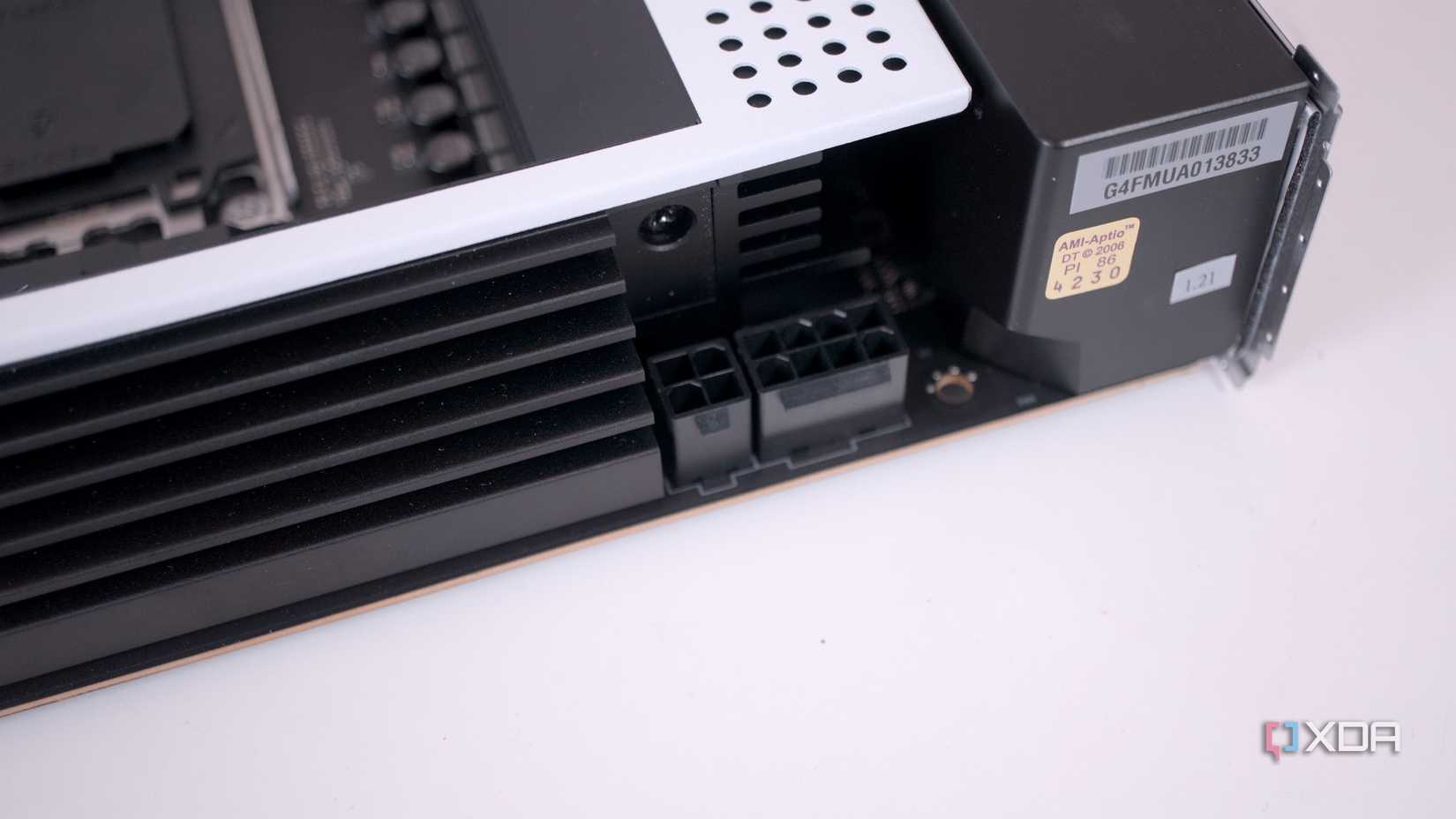

Just like many other conventions in the PC hardware world, the 4+4 pin split survived due to its simplicity and widespread adoption. Breaking the status quo by forcing countless systems to abruptly transition to an inflexible 8-pin standard would have helped no one. This design laid the groundwork for later developments, such as the addition of another 4-pin socket for overclocking headroom for high-wattage CPUs.
You'll see even the latest ATX 3.0 standard keep this convention unchanged. While other aspects have evolved, such as the GPU power connector, the CPU power cable split has remained mostly unchanged. Note that the 8-pin CPU and GPU cables look similar, but don't share the same pinout. Using them interchangeably can damage your hardware.
Modern CPU power delivery looks a lot different
Compared to the 2000s, modern processors are a different beast. They demand way more power and are subject to a lot more algorithms and quality control issues. CPU power connectors have also evolved to keep pace with rising power budgets, but what has remained the same is the inherent logic of the connector. It still features a cable split to keep older systems in the loop, while modern PCs can leverage the newer cable standards.
